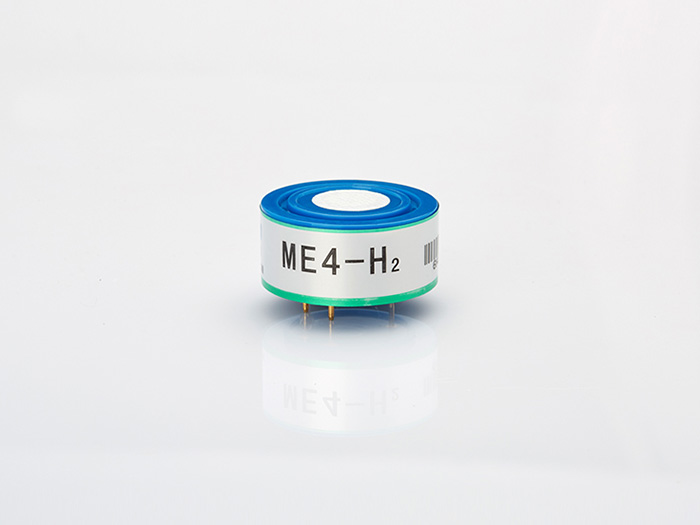

ME4-H2 Electrochemical H2 Gas Sensor

For industrial use to detect H2 gas concentration

Applications :

*Widely used in industrial fields

Product Advantages:

*Low consumption
*High sensitivity
*Wide linear range
*Good anti-interference ability
*Excellent repeatability and stability

Product Description:

ME4-H2 hydrogen gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with hydrogen and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of hydrogen. So the concentration of the target gas could be got by measuring the value of current.

Technical Parameters:

Detection Gas	hydrogen（H2）
Detection Range	0～1000ppm
Max range	2000ppm
Sensitivity	（0.03±0.01）µA/ppm
Resolution	1ppm
Response Time(T90)	≤30S
Bias Voltage	0mV
Load Resistance	10Ω(recommended)
Repeatability	＜2﹪ Output value
Stability(/month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	≤10ppm
Temperature range	-20℃～50℃
Humidity range	15﹪～90﹪RH no condensation
Pressure range	standard atmospheric pressure±10﹪
Lifespan	2 years
