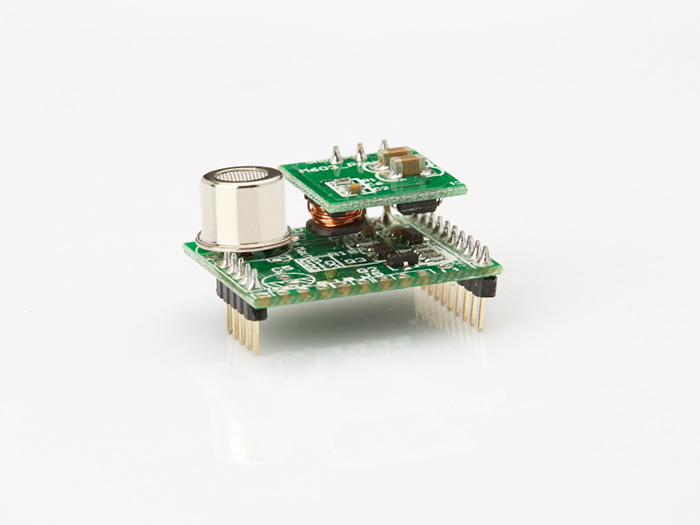

ZP05 Flat-surfaced Semiconductor Methane Module
Methane Module for Vehicle Use
Applications :
*It is used for complete device development of vehicle-mounted flue gas leak alarm to detect the flue gas in the vehicle.
Product Advantages:
- *High sensitivity
- *Wide voltage input
- *Strong anti-jamming capability
- *Good stability and shock resistance
Product Description:
ZP05 adopts thick film semiconductor sensor, which is designed for vehicle-mounted fuel gas leak alarm. It has the basic functions of vehicle-mounted flue gas leak alarm: electric power light, fault lamp, alarm light, output signal of working state; It can be installed respectively in the different positions of the vehicle, reducing the development period and guaranteeing high accurate detection.
Technical Parameters:
|
Model |
ZP05 |
|
Detection Gas |
Natural gas |
|
Detection range |
1～25%LEL |
|
Response Time |
< 30s |
|
Resume Time |
< 30s |
|
Working Voltage |
DC 9～32V |
|
Working Current |
< 80mA |
|
Output |
To be external connection with 3 LED, 1 signal output |
|
Accuracy |
±3%LEL ( under room temperature) |
|
Expected Life |
> 2 years |
|
Working Environment |
Temperature：-40~85℃ |
|
Humidity：20%~90%RH |
|
|
Storage Environment |
Temperature：-20~105℃ |
|
Humidity：20%~90%RH |
|
|
Size |
25.4×21.7×11mm（L×W×H） |
