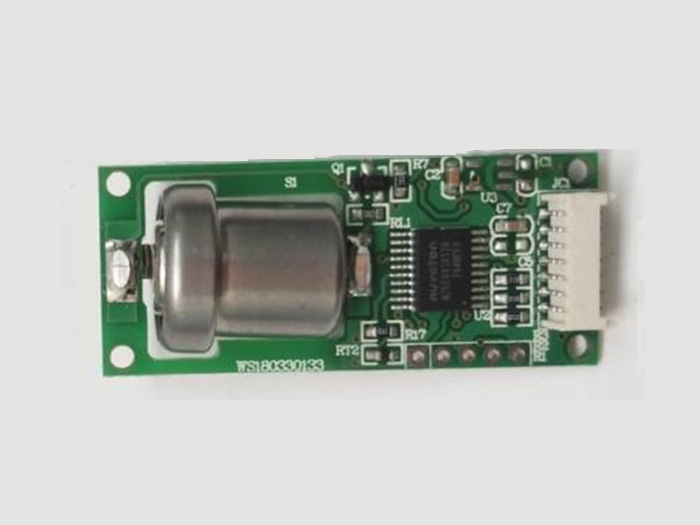

ZE16B-CO Electrochemical Carbon Monoxide Gas Module

For co detection in residential and commercial areas

Applications :

*smart home application
*co detector/monitor/alarm
*air-quality monitor device

Product Advantages:

*Low cost
*Mini size
*Built-in temperature sensor
*Serial port output, PMW output

Product Description:

ZE16-CO is a general-purpose and miniaturization electrochemical carbon monoxide detection module. It utilizes electrochemical principle to detect CO in air which makes the module with high selectivity and stability. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. It is a combination of mature electrochemical detection principle and sophisticated circuit design.

Technical Parameters:

Model No.	ZE16-CO
Detection gas	Carbon Monoxide（CO gas）
Interfering gases	Alcohol &etc.
Output data	UART output
Working voltage	5V (DC)
Working current	<5mA
Preheating time	30 seconds
Response time	≤30 seconds
Recovery time	≤30 seconds
Detection range	0～500ppm
Resolution	1ppm
Working temperature	-10℃～55℃
Working humidity	15%RH-90%RH（no condensation）
Storage temperature	-10℃～55℃
Life span	2 years（in air）
