Product Description:

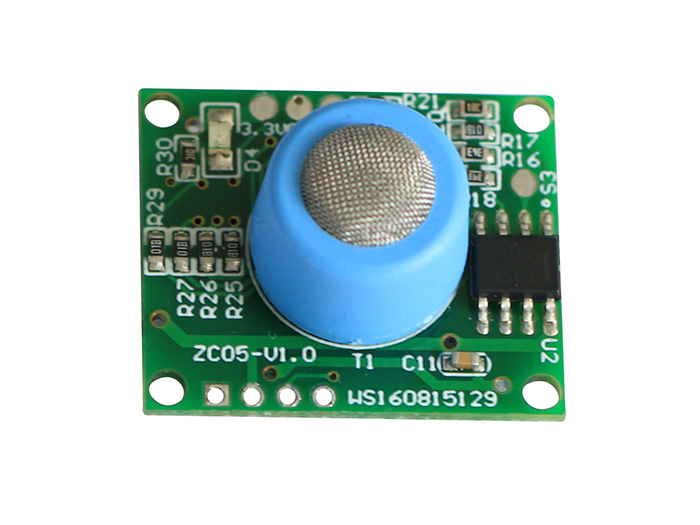

This ZC05 Module adopts catalytic gas sensor and has basic function of home use gas leakage alarm with digital display: supplying digital UART signal and status indication, buzzer, relay, switch signal through solenoid valve output, as well as support alarm point resetting. It is usually used for development of home use natural gas leakage detector.
Technical Parameters:
| Model No. | ZC05 |
| Detection Gas | Natural gas |
| Type of sensor | Catalytic type |
| Detection Range | 1%~25%LEL |
| Output | UART (0 or 3V) |
| Working Voltage | DC (5±0.1)V |
| Preheat Time | 3min |
| Response time | ≤ 10s |
| Resume time | ≤ 30s |
| Working Current | (150±10) mA |
| Resolution | 100ppm |
| Expected Lifespan | 2 years |
| Working conditions | Temperature: -10~55℃ |
| Humidity:20%~90%RH | |
| Storage Conditions | Temperature: -10~55℃ |
| Humidity:20%~65%RH |
