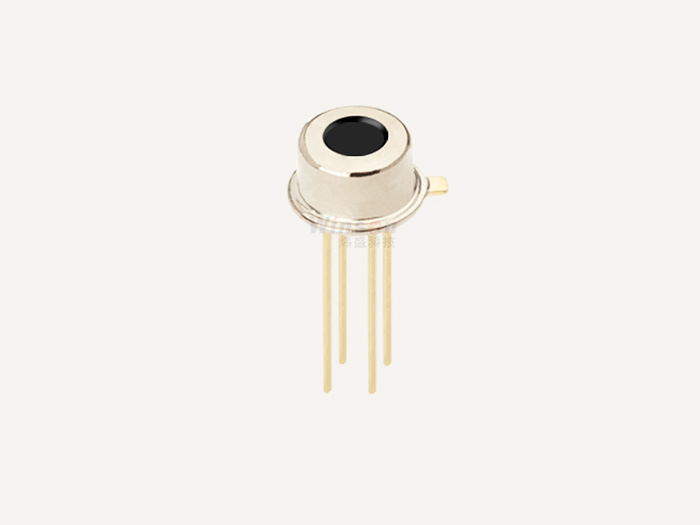

MRT511 Thermopile Temperature Sensor

For Non-contact temperature measuring

Applications :

*Infrared thermometer, such as ear temperature and forehead temperature measurement
*Continuous temperature control of production process
*Household appliances (Microwave oven, hair dryers, air conditioners etc)
*Intelligent temperature induction and control system
*Human presence detection

Product Advantages:

*TO-46 metal package
*High sensitivity
*Quick response, Good stability
*High filter transmittance
*High precision NTC

Product Description:

MRT-511 thermopile sensor is based on MEMS technology, consists of hundreds of thermocouples connected in series. Using Seebeck principle, when there is a temperature difference between the target and the environment, the sensor gives the corresponding voltage output, therefore detecting the existence of the target or the temperature of the target.

Technical Parameters:

Parameter	Value	Unit	Remarks
Sensitive area	1.6×1.6	mm
Field of view	105	Degree	Above 50%
Thermopile resistor	120±30	KΩ	25℃
Noise voltage	45	nV/Hz1/2	25℃
Noise equivalent power	0.27	nW/Hz1/2	500K, 1Hz, 25℃
Response rate	124	V/W	500K, 1Hz, 25℃
Time constant	10	ms
Detection rate	1.0 ×108	cmHz1/2/W	500K, 1Hz, 25℃
NTC resistance	100 ± 2％	KΩ	25℃
NTC(β)	3950 ± 1％	/	25℃/50℃
Working temperature	-30 ~ 125℃
