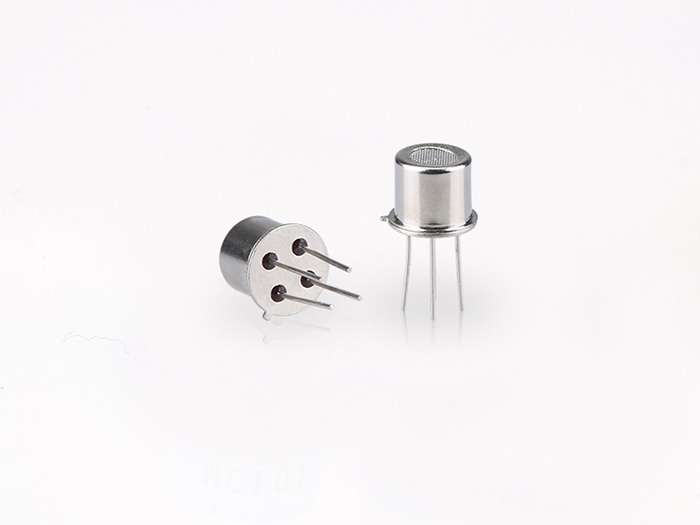

MP-5 Flat Surfaced Flammable Gas Sensor

Household Flammable Gas Sensor

Applications :

*It is widely used in domestic gas leakage alarm, industrial flammable gas alarm and portable gas detector.

Product Advantages:

- - *Lower consumption
  - *Small size
  - *Fast response and resume
  - *Highest sensitivity
  - *Excellent stability and long life
  - *Easy circuit and big signal output
  - *Excellent selectivity

Product Description:

MP-5 gas sensor is for flammable gases. It adopts multilayer thick film manufacturing technology. The heater and metal oxide semiconductor material on the ceramic substrate of subminiature Al2O3 are fetched out by electrode down-lead, encapsulated in metal socket and cap. Conductivity of the sensor is affected by the concentration of target gas. The higher the concentration is, the higher conductivity of sensor gets. Users can adopt simple circuit to convert variation of conductivity into output signal corresponding to gas concentration.

Technical Parameters:

Model			MP-5
Sensor Type			Flat surfaced semiconductor sensor
Standard Encapsulation			Metal cap
Target Gas			LPG
Detection range			300-10000ppm LPG
Standard Circuit Conditions	Loop Voltage	Vc	≤24V DC
	Heater Voltage	VH	5V±0.1V AC or DC
	Load Resistance	RL	Adjustable
Sensor character under standard test conditions	Heater Resistance	RH	85Ω±15Ω (room temp.)
	Heater consumption	PH	≤300mW
	Sensitivity	S	Ro(in air)/Rs(2000ppm C3H8)≥5
	Sensitive resistance	RS	1KΩ～20KΩ (in 2000ppm C3H8)
	Concentration Slope	α	≤0.6(R2000ppm/R500ppm C3H8)
Standard test conditions	Tem. Humidity		20℃±2℃；65%±5%RH
	Standard test circuit		Vc::5V±0.1V; VH: 5V±0.1V
	Preheat time		Not less than 48 hours
	O2 content		21%（not less than 18%） O2 concentration effects initial value, sensitivity and repeatability.
Lifespan			10 years
