Product Description:

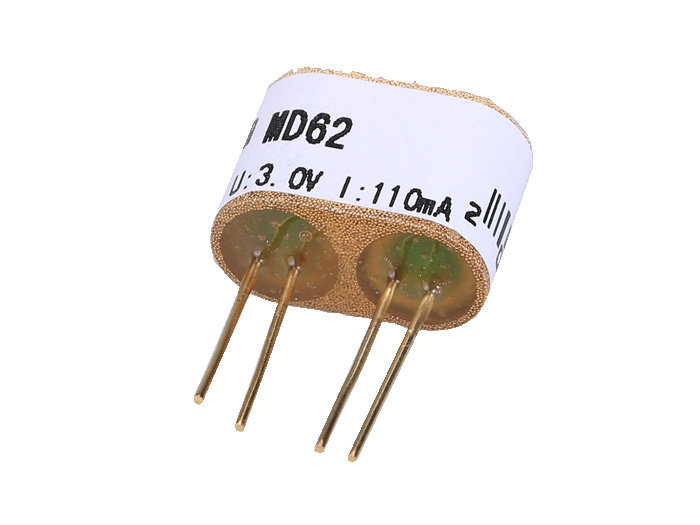

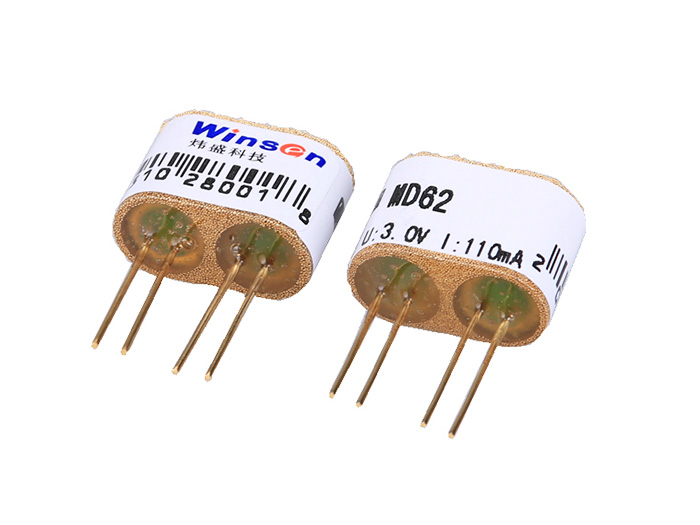

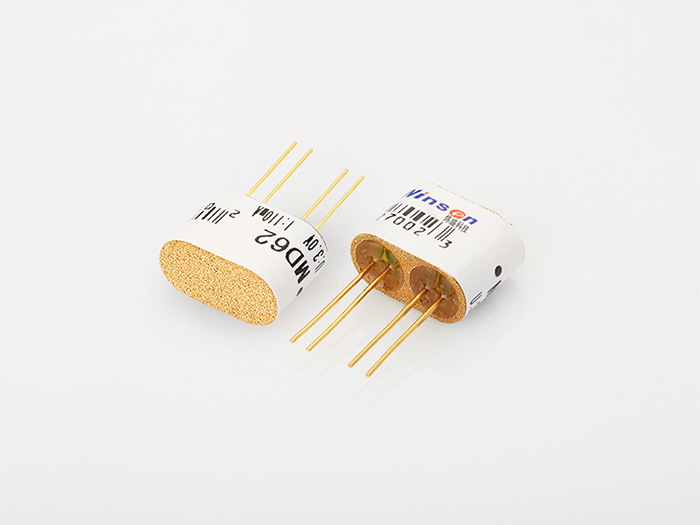

MD62 gas sensor consists of an active element and a reference element with the same resistance, both elements are placed in a wheatstone bridge circuit, The analyzing gas contents changes, the overall thermal coefficient of mixed gases changed correspondingly; when the active element meet the combustible gas, its resistance become smaller, when It meet other gas, Its resistance become larger(air background), the bridge circuit output the voltage change, this change increase according to gas concentration, the reference element as a benchmark while for temperature compensation.
Technical Parameters:
| Detection Gas | CO2 |
| Type | Thermal conduction |
| Working Voltage (V) | 3.0±0.1 (DC) |
| Working current(mA) | ≤120 mA |
| Sensitivity (mV/10%CO2) | ≥5 |
| linearity | ≤5% |
| Response time (90%) | ≤15 s |
| Resume time (90%) | ≤30 s |
| Using Environment | -20－+50℃ ＜95%RH |
| Storage Environment | -20—+70℃ ＜95%RH |
| Dimension（mm） | 19×9.5×14 |
| Explosion-proof | ExdibⅠ |
