WSP5110 Freon Gas Sensor

For domestic, environmental occasions for freon gas detection

Applications :

*Home appliance
*Air conditioner
*Gas detector

Product Advantages:

*High sensitivity to freon, benzene
*Quick response and resume
*Low power consumption, simple detection circuit
*Good stability and long life

Product Description:

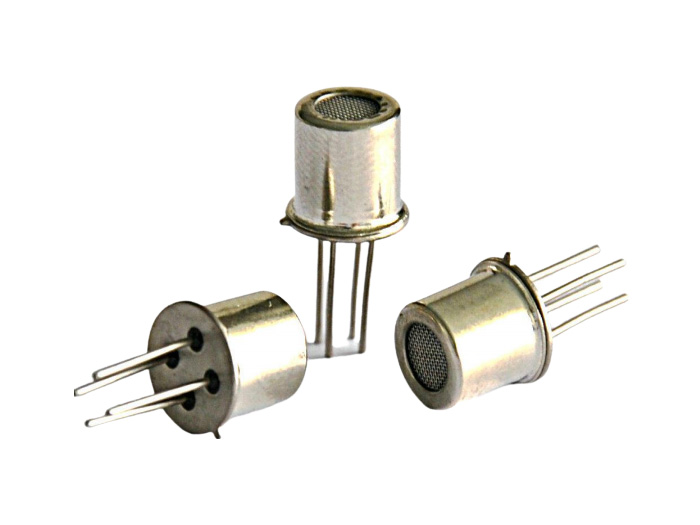

WSP5110 freon gas sensor adopts multilayer thick film manufacturing technology. The heater and metal oxide semiconductor material on the ceramic substrate of subminiature Al2O3 are fetched out by electrode down-lead, encapsulated in metal socket and cap. Conductivity of the sensor is affected by the concentration of target gas. The higher the concentration is, the higher conductivity of sensor gets. Users can adopt simple circuit to convert variation of conductivity into output signal corresponding to gas concentration.

Technical Parameters:

Model			WSP5110
Sensor Type			Semiconductor flat surfaced sensor
Standard Encapsulation			Metal Cap
Detection Gas			Freon, benzene, alcohol &etc.
Detection range			10～1000ppm
Standard circuit	Loop voltage	Vc	≤24V DC
	Heating voltage	VH	5.0V±0.1V AC or DC
	Load resistance	RL	Adjustable
sensor features in standard test condition	Heating resistance	RH	90Ω±10Ω(Room Tem.)
	Heating consumption	PH	≤300mW
	Surface resistance	RS	30KΩ～200KΩ(in 100ppm freon)
	Sensitivity	S	Rs(in air)/Rs(in 100ppm freon)≥3
	Concentration slope	α	≤0.65(R200ppm/R50ppm氟利昂)
Standard condition of test	Temperature, humidity		20℃±2℃；65%±5%RH
	Standard test circuit		Vc:5.0V±0.1V； VH:5.0V±0.1V
	Warm-up time		More than 120 hours
