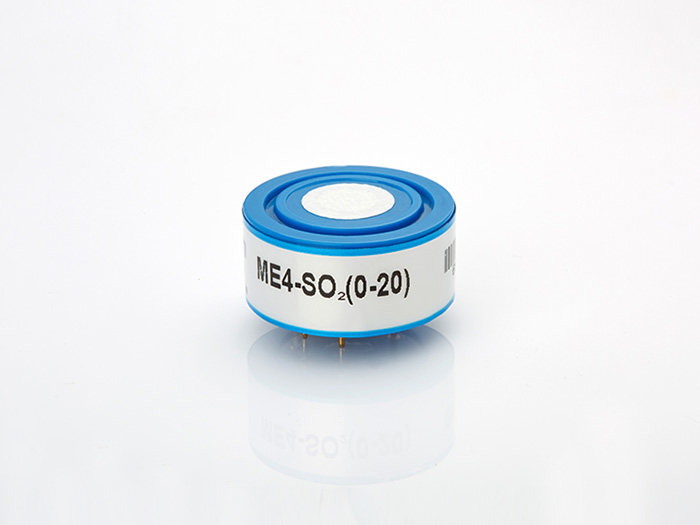

ME4-SO2 Sulfur Dioxide Gas Sensor

Sulfur Dioxide Gas Sensor

Applications :

*It is used for hydrogen sulfide detection in industrial occasions and environmental protection field.

Product Advantages:

*Low power consumption
*High precision
*High sensitivity
*Wide linear range
*Good anti-interference ability
*Excellent repeatability and stability

Product Description:

ME4-SO2 sulfur dioxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with sulfur dioxide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of sulfur dioxide. So the concentration of the target gas could be got by measuring the value of current.

Technical Parameters:

Detection Gas	Sulfur dioxide (SO2)
Detection Range	0～20ppm
Max range	200ppm
Sensitivity	（0.8±0.2）µA/ppm
Resolution	0.1ppm
Response Time(T90)	≤30S
Bias Voltage	0mV
Load Resistance	10Ω(recommended)
Repeatability	＜2﹪ Output value
Stability(/month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	≤0.2ppm
Temperature range	-20℃～50℃
Humidity range	15﹪～90﹪RH
Pressure range	standard atmospheric
Lifespan	2 years(in air)
