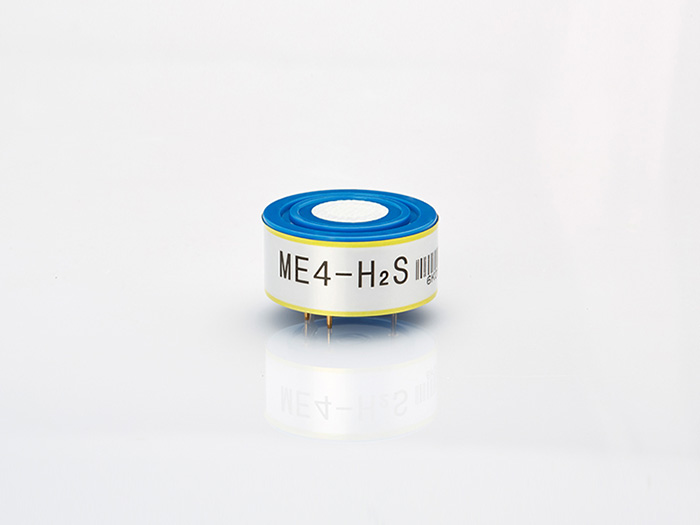

ME4-H2S Hydrogen Sulfide Gas Sensor

Hydrogen Sulfide Gas Sensor

Applications :

*It is used for hydrogen sulfide detection in industrial occasions, mine and environmental protection field.

Product Advantages:

*Low power consumption
*High precision
*High sensitivity
*Wide linear range
*Good anti-interference ability
*Excellent repeatability and stability

Product Description:

ME4-H2S hydrogen sulfide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with hydrogen sulfide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of hydrogen sulfide. So the concentration of the target gas could be got by measuring the value of current.

Technical Parameters:

Detection Gas	Hydrogen Sulfide(H2S)
Detection Range	0～100ppm
Max range	500ppm
Sensitivity	(0.8±0.15)µA/ppm
Resolution	0.1ppm
Response Time(T90)	＜30S
Bias Voltage	0mV
Load Resistance	10Ω(recommended)
Repeatability	＜2﹪Output value
Stability(/month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	≤0.2ppm
Temperature range	-20℃～50℃
Humidity range	15﹪～90﹪RH
Pressure range	standard atmospheric pressure±10﹪
Lifespan	2years(in air)
