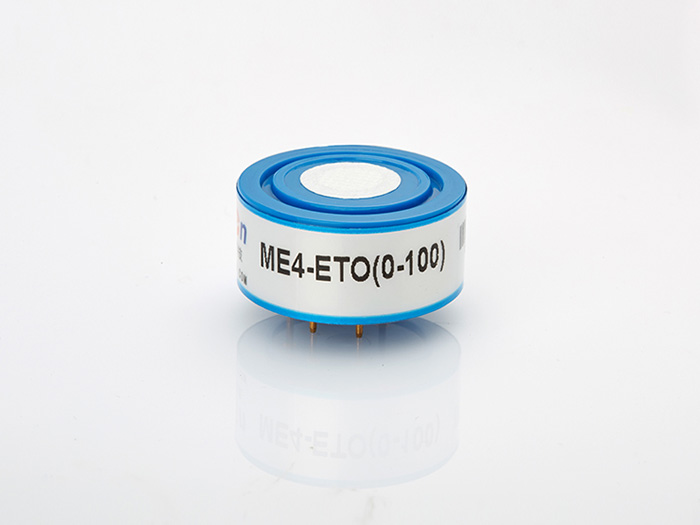

ME4-ETO Ethylene Oxide Gas Sensor

Ethylene Oxide Gas Sensor

Applications :

*For ETO gas detection in petroleum and petrochemical occasion, medicine and environmental protection field.

Product Advantages:

*Low power consumption
*High precision
*High sensitivity
*Wide linear range
*Good anti-interference ability
*Excellent repeatability and stability

Product Description:

ME4-ETO ethylene oxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with ethylene oxide gas take place inside of the sensor. The process releases electric charge and generates current. The current is in direct proportion to the concentration of ethylene oxide gas. So the concentration of the target gas could be got by measuring the value of current.

Technical Parameters:

Detection Gas	ethylene oxide (ETO)
Detection Range	0～20ppm
Max range	100ppm
Sensitivity	（1.8±0.3）µA/ppm
Resolution	0.1ppm
Response Time(T90)	＜120S
Bias Voltage	300mV
Load Resistance	10Ω(recommended)
Repeatability	＜2﹪ Output value
Stability(/month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	4ppm
Temperature range	-20℃～50℃
Humidity range	15﹪～90﹪RH (No condensation)
Pressure range	standard atmospheric pressure±10﹪
Lifespan	2 years
