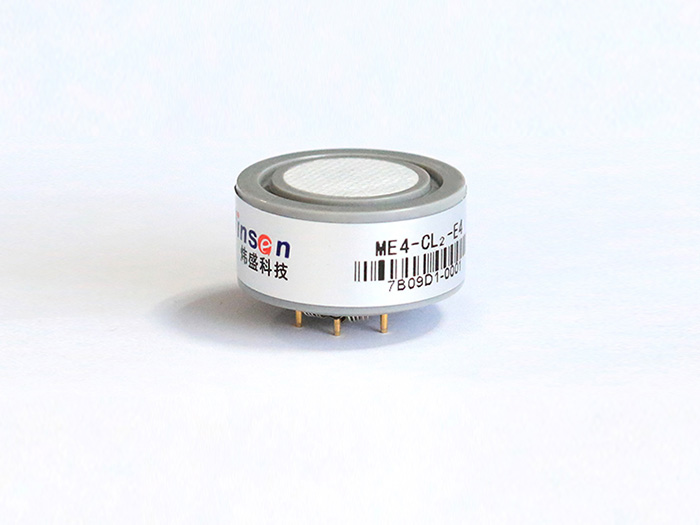

ME4-Cl2-E4 Chlorine Gas Sensor

Chlorine Gas Sensor

Applications :

*It is used for chlorine gas detection in the occasions such as chemical engineering, medicine environmental protection field.

Product Advantages:

*High precision
*High sensitivity
*Short response time
*Good anti-interference ability
*High resolution
*Wide linear range

Product Description:

ME4-Cl2-E4 chlorine gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with chlorine gas and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of chlorine gas and conform to faraday's law. So the concentration of the target gas could be got by measuring the value of current. The 4th electrode (auxiliary electrode) is used to compensate the zero current, to make it has the characteristics of strong signal level and low zero current.

Technical Parameters:

Detection Gas	Chlorine Gas（Cl2）
Detection Range	0～20ppm
Max range	60ppm
Sensitivity	-0.205~-0.548µA/ppm
Resolution	<10ppb
Response Time(T90)	≤60S
Load Resistance	33Ω(recommended)
Stability(/month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	≤0.2ppm
Temperature range	-20℃～50℃
Humidity range	15﹪～90﹪RH No condensation
Pressure range	standard atmospheric pressure ±10﹪
Lifespan	2 years
