4S-NO2 Nitrogen Dioxide Sensor

Nitrogen Dioxide Gas Sensor

Applications :

*Widely used in industrial and environmental protection fields.

Product Advantages:

*Low power consumption
*High precision
*High sensitivity
*Wide linear range
*Excellent repeatability and stability

Product Description:

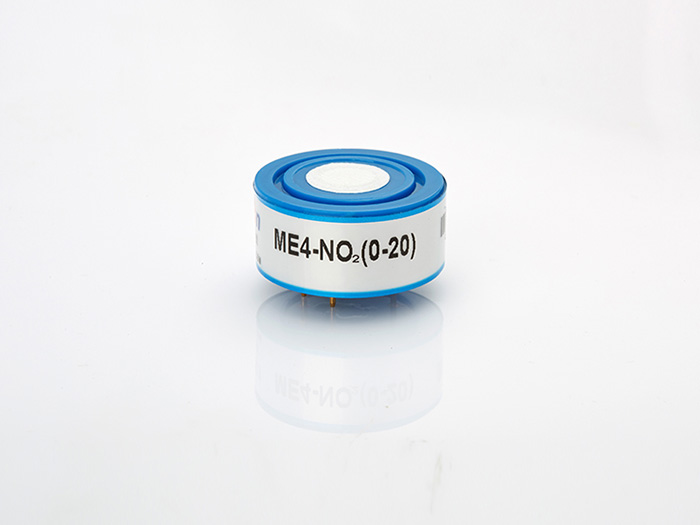

ME4-NO2 nitrogen dioxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with nitrogen dioxide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of nitrogen dioxide. So the concentration of the target gas could be got by measuring the value of current.

Technical Parameters:

Technical	nitrogen dioxide（NO2）
Detection Range	0～20ppm
Max range	150ppm
Sensitivity	（1.2±0.3）µA/ppm
Resolution	0.1ppm
Response Time(T90)	＜30S
Bias Voltage	10Ω(recommended)
Load Resistance	0mV
Repeatability	＜2﹪Output value
Stability(/month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	0.2ppm
Temperature range	-20℃～50℃
Humidity range	15﹪～90﹪RH
Pressure range	standard atmospheric pressure±10﹪
Lifespan	2 years(in air)
